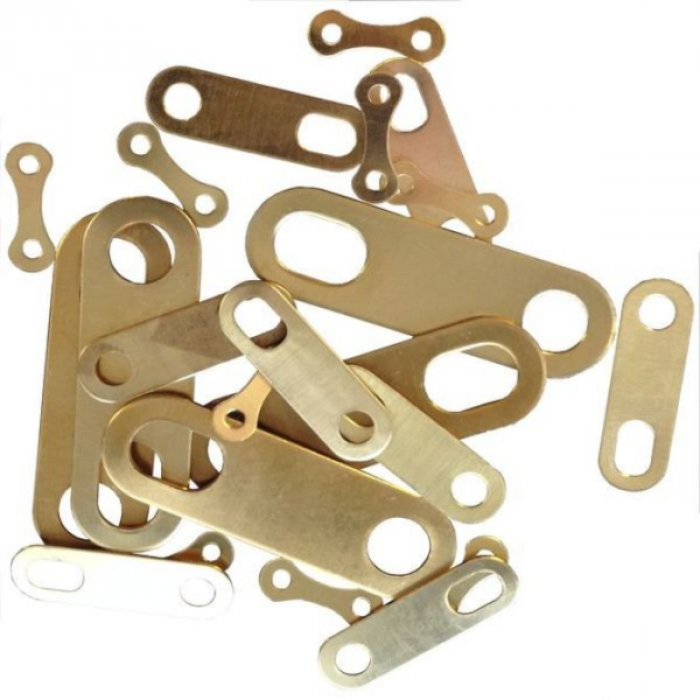

Terminal links

SKU

GR_EG_KV_NL

A terminal board is used to connect electric motors to the electricity grid.
The connection strips are used on the motor terminal board for star / triangle or single fase adjustment. These strips are normally supplied with a new terminal board or new motor.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Terminal links Subproducts

Article number	Product name	Order size	Unit	Price	Qty
EG.KV0000	Terminal Links Type KV 0 - 22 x 8 mm, h.o.h. 13 mm, M3	3	1 st	€1.06	- +
EG.KV0001	Terminal Links Type KV 1 - 26 x 8 mm, h.o.h. 18 mm, M4	3	1 st	€1.08	- +
EG.KV0041	Terminal Links Type KV 41 - 24 x 8 mm, h.o.h. 15 mm, M4	3	1 st	€1.08	- +
EG.KV0093-1	Terminal Links Type KV 93-1 - 25 x 8 mm, h.o.h. 16 mm, M4	3	1 st	€1.44	- +
EG.KV0101	Terminal Links Type KV 101 - 23 x 8 mm, h.o.h. 15 mm, M4	3	1 st	€1.06	- +
EG.KV0199	Terminal Links Type KV 199 - 18 x 7 mm, h.o.h. 10 mm, M4	3	1 st	€1.02	- +
EG.KV0200	Terminal Links Type KV 200 - 29 x 8 mm, h.o.h. 18 mm, M4	3	1 st	€1.10	- +
EG.KV0002	Terminal Links Type KV 2 - 30 x 10 mm, h.o.h. 18 mm, M5	3	1 st	€1.32	- +
EG.KV0008	Terminal Links Type KV 8 - 33 x 10 mm, h.o.h. 20 mm, M5	3	1 st	€1.38	- +
EG.KV0093-2	Terminal Links Type KV 93-2 - 31 x 10 mm, h.o.h. 20 mm, M5	3	1 st	€1.44	- +
EG.KV0003	Terminal Links Type KV 3 - 37 x 12 mm, h.o.h. 22 mm, M6	3	1 st	€1.54	- +
EG.KV0093-4	Terminal Links Type KV 93-4 - 37 x 12 mm, h.o.h. 25 mm, M6	3	1 st	€1.44	- +
EG.KV0004	Terminal Links Type KV 4 - 40 x 12 mm, h.o.h. 25 mm, M6	3	1 st	€1.58	- +
EG.KV0005	Terminal Links Type KV 5 - 42 x 12 mm, h.o.h. 27 mm, M6	3	1 st	€1.62	- +
EG.KV0093-3	Terminal Links Type KV 93-3 - 40 x 12 mm, h.o.h. 28 mm, M6	3	1 st	€1.48	- +
EG.KV0006	Terminal Links Type KV 6 - 49 x 14 mm, h.o.h. 35 mm, M8	3	1 st	€1.88	- +
EG.KV0096	Terminal Links Type KV 96 - 46 x 16 mm, h.o.h. 30 mm, M8	3	1 st	€1.78	- +
EG.KV0710	Terminal Links Type KV 710 - 65 x 20 mm, h.o.h. 40 mm, M10	3	1 st	€4.34	- +
EG.KV0712	Terminal links KV 712- 73 x 21 mm, h.o.h. 41 mm, M12	3	1 st	€6.32	- +
EG.KV1016M12	Terminal links KV 1016M12 - 83 x 25 mm, h.o.h. 51 mm, M12	3	1 st	€8.22	- +

Details

More Information

Product Attachments

Details

The connection strips

More Information

More Information
Opmerkingen	.
Order factor	3
Levertijd	Usually from stock, 2-4 days
