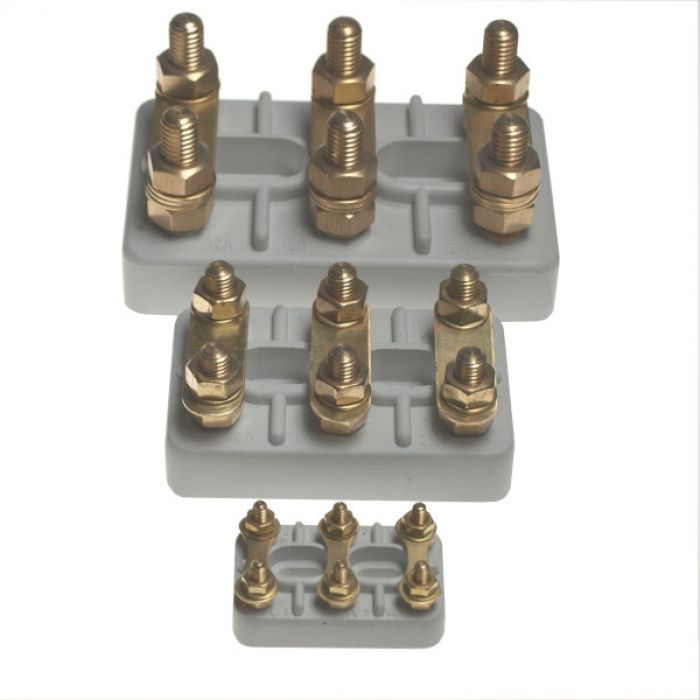

Motor terminal blocks type AK - 6-pole

SKU
GR_EG_AK_NL

The motor terminal boards are used to connect electrical motors to the power grid.


They are made of high-quality plastic that is UL-94 V-0 flammability classification compliant.


They are supplied fully mounted, equipped with nuts, rings and connecting strips. The AK motor terminal blocks are equipped with slotted fixing holes.



Motor terminal blocks type AK - 6-pole Subproducts

Article number Product name Order size Unit Price Stock Qty
EG.AK205 Motor terminal block 6 poles AK 205 - M3 - 40 x 25 1 1 st
€7.88
-
+
EG.AK216 Motor terminal block 6 poles AK 216 - M4 - 43 x 27 1 1 st
€8.68
-
+
EG.AK225 Motor terminal block 6 poles AK 225 - M5 - 56 x 36 1 1 st
€12.16
-
+
EG.AK230 Motor terminal block 6 poles AK 230 - M6 - 70 x 45 1 1 st
€16.36
-
+
EG.AK250 Motor terminal block 6 poles AK 250 - M8 - 95 x 60 1 1 st
€31.36
-
+
EG.AK255 Motor terminal block 6 poles AK 255 - M10 - 120 x 75 1 1 st
€65.80
-
+
Details

More Information
More Information
Opmerkingen
Type
L x W x H (mm)
Mounting Holes (mm)
Bolt
AK 205
40 x 25 x 10
11 - 19
M3
AK 216
43 x 27 x 12
12 - 20
M4
AK 225
56 x 36 x 13
16 - 24
M5
AK 230
70 x 45 x 15
20 - 32
M6
AK 250
95 x 60 x 21
30 - 54
M8
AK 255
120 x 75 x 20
30 - 60
M10
Levertijd Usually from stock, 2-4 days
