Starting relay for starter capacitors
SKU
GR_RM_ERA_NL

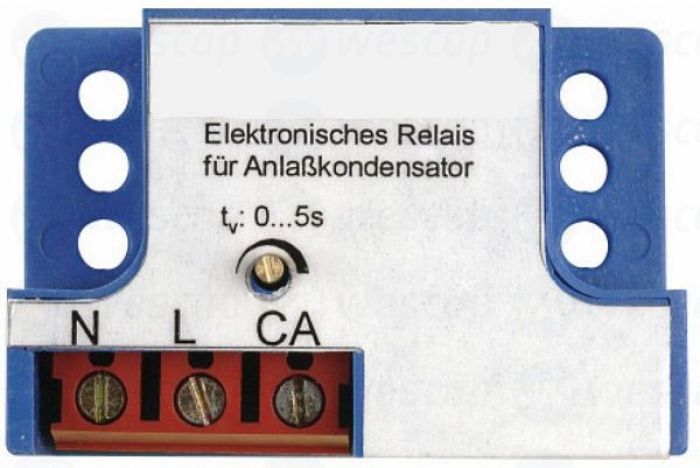

The ERA electronic relay controls the motor and start capacitor by means of an electronic adjustable time switch.
The main function of the electronic relay is to control the connection between the start capacitor and the motor and is particularly suitable for applications demanding frequent switching.
- single phase motors
- three phase motors at single phase
| Opmerkingen |
Technical data: Electrical data Operation voltage: 230V ~ ± 10% Optional: 115V ~ ± 10% Attention! the operational liability cannot be guaranteed with a permanet overvoltage of +10% and a maximum ambient temperature at the same time Switching current : max. 24A~ ambient temperature max. +80°C Dimensions (LxWxH): 52 x 35 x 22 mm Mounting: with screws or glued Protection factor: IP 20 Weight: about 70g |
|---|---|
| Levertijd | Usually from stock, 2-4 days |
