Slot cover NMN8, heat class F

SKU

GR_ML_GRKN80_NL

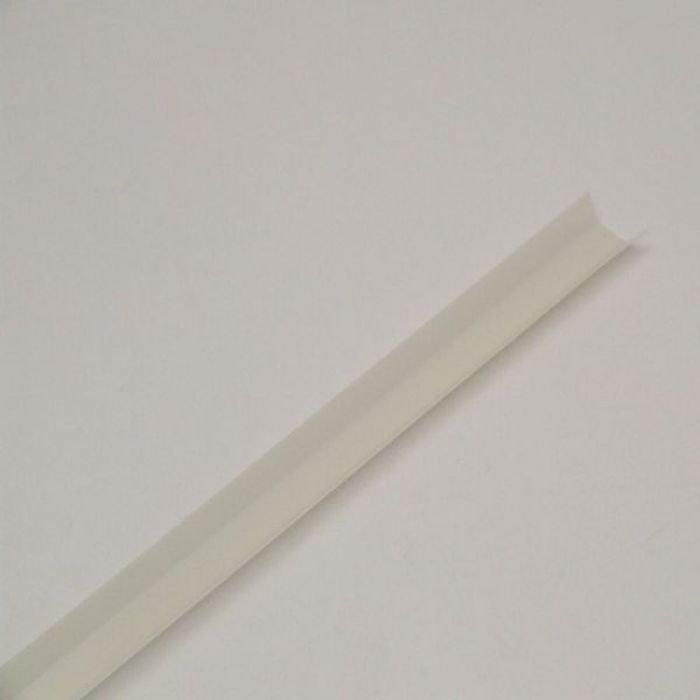

Slot cover class F, these are u-shaped caps made of Nomex-Mylar (Polyester foil) -Nomex.

These are used to seal and / or insulate the windings in rotors and stators.

Slot cover NMN8, heat class F Subproducts

Article number	Product name	Order size	Unit	Price	Qty
ML.80GRKN10	Slot cover NMN/80 heat class F - 4,00 x 2,00 x 4,00 mm	1	100 mtr	€71.70	- +
ML.80GRKN11/25	Slot cover NMN/80 heat class F - 4,25 x 2,50 x 4,25 mm	1	100 mtr	€71.50	- +
ML.80GRKN12	Slot cover NMN/80 heat class F - 4,50 x 3,00 x 4,50 mm	1	100 mtr	€73.70	- +
ML.80GRKN13	Slot cover NMN/80 heat class F - 4,75 x 3,50 x 4,75 mm	1	100 mtr	€80.76	- +
ML.80GRKN14	Slot cover NMN/80 heat class F - 5,00 x 4,00 x 5,00 mm	1	100 mtr	€82.30	- +
ML.80GRKN15	Slot cover NMN/80 heat class F - 5,25 x 4,50 x 5,25 mm	1	100 mtr	€86.76	- +
ML.80GRKN16	Slot cover NMN/80 heat class F - 5,50 x 5,00 x 5,50 mm	1	100 mtr	€93.54	- +
ML.80GRKN17	Slot cover NMN/80 heat class F - 5,75 x 5,50 x 5,75 mm	1	100 mtr	€96.62	- +
ML.80GRKN18	Slot cover NMN/80 heat class F - 6,00 x 6,00 x 6,00 mm	1	100 mtr	€97.54	- +
ML.80GRKN19	Slot cover NMN/80 heat class F - 6,25 x 6,50 x 6,25 mm	1	100 mtr	€102.36	- +
ML.80GRKN22	Slot cover NMN/80 heat class F - 7,00 x 8,00 x 7,00 mm	1	100 mtr	€116.10	- +
ML.80GRKN24	Slot cover NMN/80 heat class F - 7,50 x 9,00 x 7,50 mm	1	100 mtr	€125.78	- +
ML.80GRKN26	Slot cover NMN/80 heat class F - 8,00 x 10,00 x 8,00 mm	1	100 mtr	€143.60	- +

Details

Nomex thickness: 0.08mm

Heat class: F (155 °C)

Thicknesses: 0.36 mm for the dimensions 10 to 18 mm

0.48 mm for the dimensions 19 to 26 mm
