Motor Run Capacitors / Comar MKA 450V Series

SKU

GR_WH_BK_NL

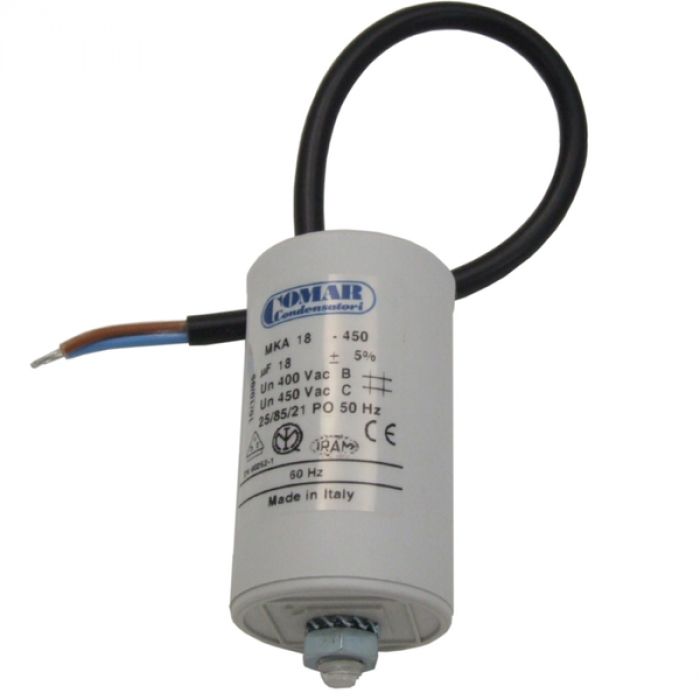

Motor run capacitors are used to connect 3-phase motors to the 1-phase net. The capacitors are housed in a plastic casing. Furthermore, they are equipped with a cast-in lead-out cable and an M8 fixing bolt, nut, spring washer and lead-in cable.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Motor Run Capacitors / Comar MKA 450V Series Subproducts

Article number	Product name	Order size	Unit	Price	Qty
WH.BK001	Motor run capacitor 1uF/450V/Pla-C8 CB250 25x57	1	1 st	€4.90	- +
WH.BK0015-UL	Motor run capacitor 1.5uF/450V/Pla-C8 CB250 25x57 - UL:	1	1 st	€6.14	- +
WH.BK002-UL	Motor run capacitor 2uF/450V/Pla-C8 CB250 25x57 - UL	1	1 st	€6.14	- +
WH.BK0025-UL	Motor run capacitor 2.5uF/450V/Pla-C8 CB250 25x57 - UL	1	1 st	€5.88	- +
WH.BK003	Motor run capacitor 3uF/450V/Pla-C8 CB250 25x57	1	1 st	€4.64	- +
WH.BK004	Motor run capacitor 4uF/450V/Pla-C8 CB250 25x57	1	1 st	€4.64	- +
WH.BK005	Motor run capacitor 5uF/450V/Pla-C8 CB250 30x57	1	1 st	€5.12	- +
WH.BK0063-UL	Motor run capacitor 6,3uF/450V/Pla-C8 CB250 30x57 - UL	1	1 st	€7.46	- +
WH.BK008-UL	Motor run capacitor 8uF/450V/Pla-C8 CB400 30x70 - UL	1	1 st	€8.20	- +
WH.BK010	Motor run capacitor 10uF/450V/Pla-C8 CB400 30x70	1	1 st	€7.04	- +
WH.BK012	Motor run capacitor 12uF/450V/Pla-C8 CB400 35x70	1	1 st	€7.96	- +
WH.BK014	Motor run capacitor 14uF/450V/Pla-C8 CB400 35x70	1	1 st	€8.20	- +
WH.BK016	Motor run capacitor 16uF/450V/Pla-C8 CB400 40x70	1	1 st	€9.06	- +
WH.BK018	Motor run capacitor 18uF/450V/Pla-C8 CB400 40x70	1	1 st	€6.00	- +
WH.BK020	Motor run capacitor 20uF/450V/Pla-C8 CB400 40x70	1	1 st	€12.78	- +
WH.BK025	Motor run capacitor 25uF/450V/Pla-C8 CB400 40x94	1	1 st	€13.90	- +
WH.BK030	Motor run capacitor 30uF/450V/Pla-C8 CB400 40x94	1	1 st	€15.10	- +
WH.BK035	Motor run capacitor 35uF/450V/Pla-C8 CB400 45x94	1	1 st	€13.94	- +
WH.BK040	Motor run capacitor 40uF/450V/Pla-C8 CB400 45x94	1	1 st	€13.92	- +
WH.BK045	Motor run capacitor 45uF/450V/Pla-C8 CB250 50x94	1	1 st	€14.85	- +
WH.BK050	Motor run capacitor 50uF/450V/Pla-C8 CB400 50x94	1	1 st	€16.76	- +
WH.BK060	Motor run capacitor 60uF/450V/Pla-C8 CB400 50x120	1	1 st	€19.58	- +
WH.BK070	Motor run capacitor 70uF/450V/Pla-C8 CB250 50x120	1	1 st	€20.38	- +
WH.BK080	Motor run capacitor 80uF/450V/PLa-C8 CB250 50x120	1	1 st	€22.26	- +
WH.BK100	Motor run capacitor 100uF/450V/Pla-C8 CB250 60x120	1	1 st	€28.26	- +

More Information

Product Attachments

More Information

More Information
Price	€10.00
Opmerkingen	Typ : MKA Lead Length : 250 mm Voltage : 450 Volt Frequency : 50-60 Hz Tolerance : +/- 5% Class : 400 V - B 10000h (HPFMT) : 450 V - C 3000h (HPFPU) Operating Temperature : -25°C/+85°C Approvals : VDE EN60252-1 (1,5 - 45) : VDE EN60252-1 (1,5 - 45) : UL E214047
Levertijd	Usually from stock, 2-4 days
