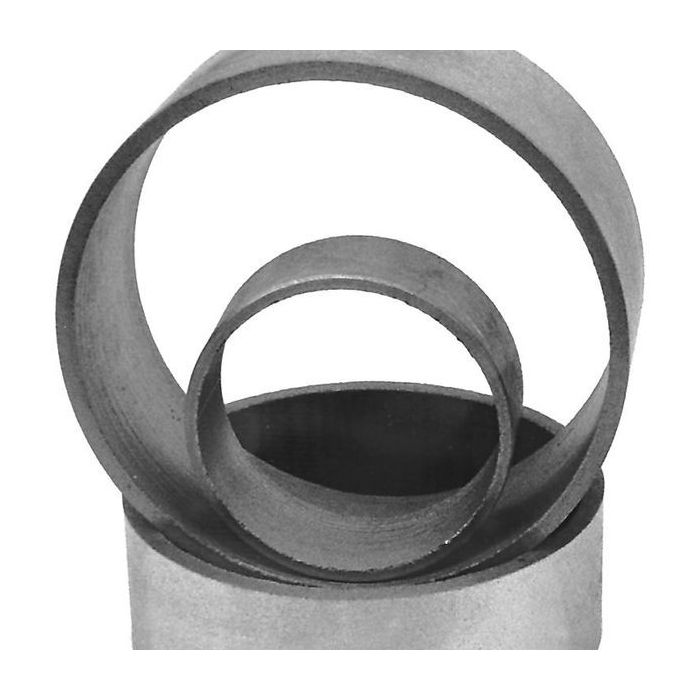

Knight-Sleeves® Oversized bearing Housing Repair Sleeve
SKU
GR_KC_XLC_NL
Knight-Sleeves® Bearing House XLC repair bushes, for a quick repair of bearing house fittings, which have already been bushed.
These buses have a larger outside diameter than the standard repair bushes.
The assembly is as follows:
- Turn bearing housing to size *
- Assemble repair box (paste ** or press)
- Turn the repair sleeve to the desired bearing size.
- Turn away the remaining projection.
- Assemble repair box (paste ** or press)
- Turn the repair sleeve to the desired bearing size.
- Turn away the remaining projection.
* bore tolerance for pasting: H7
* bore tolerance for presses: -0.05
** e.g. with WEICONLOCK AN 306-60
* bore tolerance for presses: -0.05
** e.g. with WEICONLOCK AN 306-60
The assembly proceeds as follows:
- Turn the bearing housing to size *
- Mount the repair bushing gluing ** or pressing)
- Turn the repair bushing to the desired bearing size.
- Turn away the remaining protruding part.
* bore tolerance for gluing: H7
* bore tolerance for pressing: -0,05
** e.g.with WEICONLOCK AN 306-60
| Opmerkingen |
Available in sizes for bearings including,but not limited to the 6000,6200 and 6300 series. - unsurpassed smooth finish on the inside, reduces wear on your tools. |
|---|
