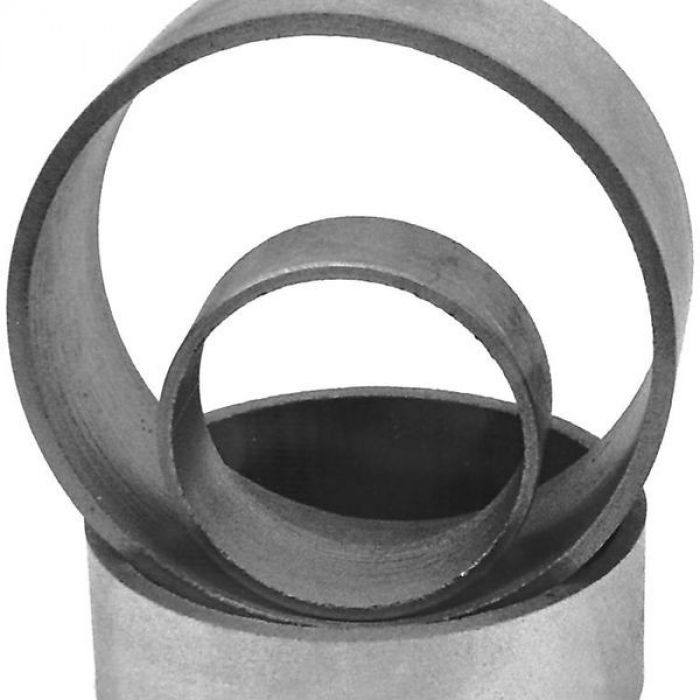

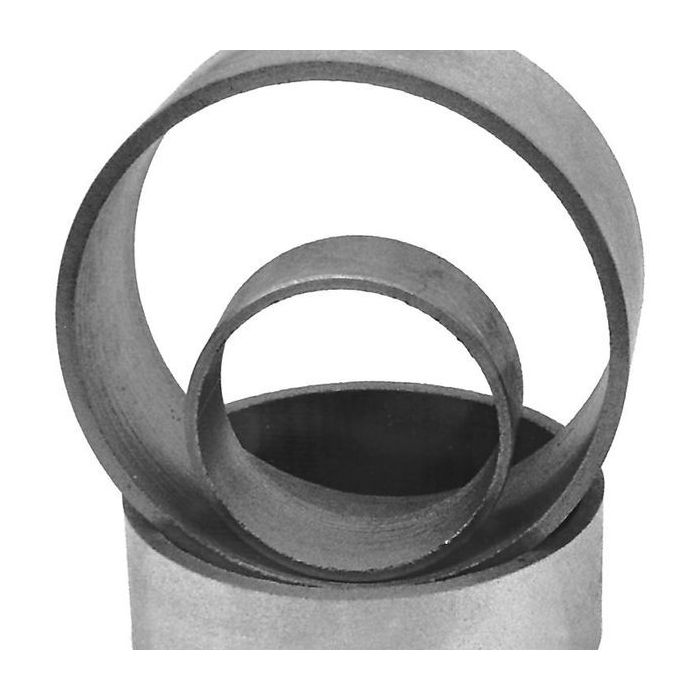

Bearing housings repair sleeves 6002-6011, 6200-6210, 6300-6309

SKU

GR_KC_GH_6211-6220

Bearing housings repair sleeves are used for repairing worn bearing housings/end bells on electric motors and for preventing eddy currents from causing damage to motor bearings.These are available for bearing sizes 6002-6026 / 6200 - 6224 / 6300-6320. The sleeves are made from steel S355J2 (1.0577) that machines easily and produces a quality finish.

Bearing housings repair sleeves have:

unmatched smooth finish on the ID easing the wear on tooling
exactly 1mm to machine of the ID - good depth to finish in one cut
guaranteed to be round because of our smooth production technique
chamfer on both edges
minimal weight in both handling and shipping - no excess material on ID
close tolerance (+/- 0.002")

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Bearing housings repair sleeves 6002-6011, 6200-6210, 6300-6309 Subproducts

Article number	Product name	Order size	Unit	Price	Qty
HG.GH10030	Bearing housing repair, #6013 6211,6309	1	1 st	€33.68	- +
HG.GH10040	Bearing housing repair, #6013 6211,6309	1	1 st	€44.92	- +
HG.GH10050	Bearing housing repair, #6013 6211,6309	1	1 st	€55.92	- +
HG.GH11030	Bearing housing repair, #6014 6212,6310	1	1 st	€34.58	- +
HG.GH11040	Bearing housing repair, #6014 6212,6310	1	1 st	€46.06	- +
HG.GH11050	Bearing housing repair, #6014 6212,6310	1	1 st	€57.34	- +
HG.GH11060	Bearing housing repair, #6014 6212,6310	1	1 st	€69.04	- +
HG.GH12040	Bearing housing repair, #6213,6311	1	1 st	€48.36	- +
HG.GH12050	Bearing housing repair, #6213,6311	1	1 st	€60.36	- +
HG.GH12060	Bearing housing repair, #6213,6311	1	1 st	€72.32	- +
HG.GH12070	Bearing housing repair, #6213,6311	1	1 st	€84.28	- +
SE.GH12540	Repair Sleeve Ø 130 mm, length 40 mm	1	1 st	€49.46	- +
KC.GH12540	Knight-Sleeves® bearing housing repair, #6016/6214	1	1 st	€49.46	- +
HG.GH12540	Bearing housing repair, #6016 6214	1	1 st	€49.46	- +
KC.GH12550	Knight-Sleeves® bearing housing repair, #6016/6214	1	1 st	€61.72	- +
HG.GH12550	Bearing housing repair, #6016 6214	1	1 st	€61.72	- +
KC.GH12560	Knight-Sleeves® bearing housing repair, #6016/6214	1	1 st	€74.18	- +
HG.GH12560	Bearing housing repair, #6016 6214	1	1 st	€74.18	- +
SE.GH12570	Repair Sleeve Ø 130 mm, length 70 mm	1	1 st	€86.56	- +
KC.GH12570	Knight-Sleeves® bearing housing repair, #6016/6214	1	1 st	€86.56	- +
HG.GH12570	Bearing housing repair, #6016 6214	1	1 st	€86.56	- +
HG.GH13040	Bearing housing repair, #6017 6215,6312	1	1 st	€50.64	- +
KC.GH13050	Knight-Sleeves® bearing housing repair, #6017/6215/6312	1	1 st	€63.34	- +
HG.GH13050	Bearing housing repair, #6017 6215,6312	1	1 st	€63.34	- +
KC.GH13060	Knight-Sleeves® bearing housing repair, #6017/6215/6312	1	1 st	€76.06	- +
HG.GH13060	Bearing housing repair, #6017 6215,6312	1	1 st	€76.06	- +
HG.GH13070	Bearing housing repair, #6017 6215,6312	1	1 st	€88.40	- +
KC.GH14050	Knight-Sleeves® bearing housing repair, #6018/6216/6313	1	1 st	€64.70	- +
KC.GH14070	Knight-Sleeves® bearing housing repair, #6018/6216/6313	1	1 st	€90.74	- +
KC.GH15040	Knight-Sleeves® bearing housing repair, #6020/6217/6314	1	1 st	€53.02	- +
KC.GH15070	Knight-Sleeves® bearing housing repair, #6020/6217/6314	1	1 st	€92.60	- +
KC.GH16040	Knight-Sleeves® bearing housing repair, #6021/6218/6315	1	1 st	€60.96	- +
KC.GH16060	Knight-Sleeves® bearing housing repair, #6021/6218/6315	1	1 st	€91.40	- +
HG.GH16070	Bearing housing repair #6018 6216 6313	1	1 st	€106.58	- +
KC.GH18070	Knight-Sleeves® bearing housing repair, #6024/6220/6317	1	1 st	€116.74	- +

Details

More Information

Details

The assembly proceeds as follows:

- Turn the bearing housing to size *
- Mount the repair bushing gluing ** or pressing)
- Turn the repair bushing to the desired bearing size.
- Turn away the remaining protruding part.

* bore tolerance for gluing: H7
* bore tolerance for pressing: -0,05
** e.g.with WEICONLOCK AN 306-60

More Information

More Information
Opmerkingen	Voor andere lager series neem dan contact met ons op.
Levertijd	Usually from stock, 2-4 days
