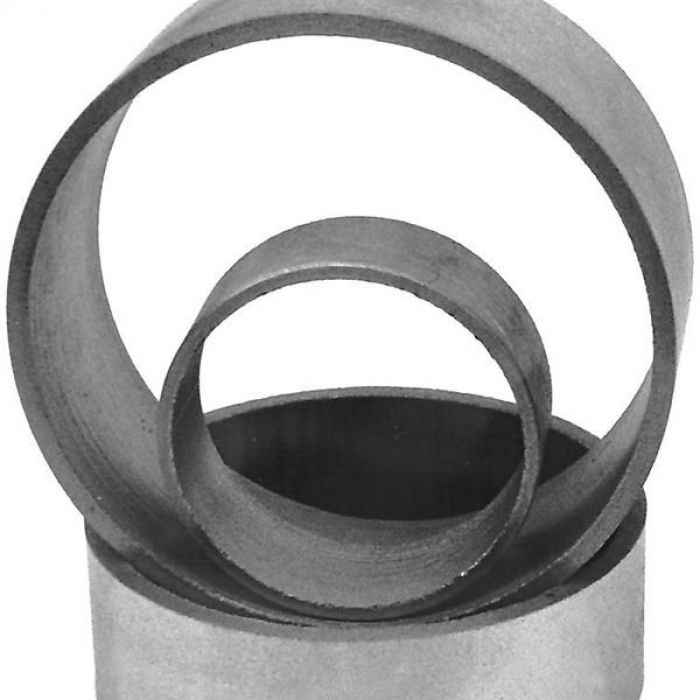

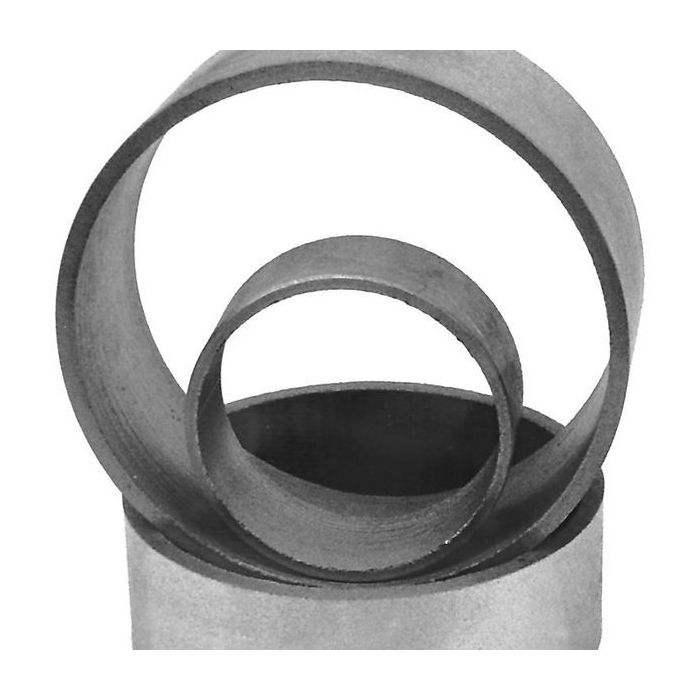

Bearing housings repair sleeves 6000-6011, 6200-6210, 6300-6309

SKU

GR_KC_GH_NL

Bearing housings repair sleeves are used for repairing worn bearing housings/end bells on electric motors and for preventing eddy currents from causing damage to motor bearings.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Bearing housings repair sleeves 6000-6011, 6200-6210, 6300-6309 Subproducts

Article number	Product name	Order size	Unit	Price	Qty
SE.GH02820	Repair Sleeve Ø 31 mm, length 20 mm	1	1 st	€30.00	- +
KC.GH03020	Knight-Sleeves® bearing housing repair, #6200	1	1 st	€22.60	- +
HG.GH03020	Bearing housing repair, #6200	1	1 st	€22.60	- +
SE.GH03220	Repair Sleeve Ø 35 mm, length 20 mm	1	1 st	€23.18	- +
HG.GH03220	Bearing housing repair, #6002/620	1	1 st	€23.18	- +
HG.GH03520	Bearing housing repair, #6003/6202/6300	1	1 st	€24.24	- +
SE.GH03720	Repair Sleeve Ø 40 mm, length 20 mm	1	1 st	€24.88	- +
KC.GH03720	Knight-Sleeves® bearing housing repair, #6301	1	1 st	€24.88	- +
HG.GH03720	Bearing housing repair, #6301	1	1 st	€24.88	- +
HG.GH04020	Bearing housing repair, #6203	1	1 st	€25.02	- +
SE.GH04220	Repair Sleeve Ø 45 mm, length 20 mm	1	1 st	€25.22	- +
HG.GH04220	Bearing housing repair, #6004/6302	1	1 st	€25.22	- +
HG.GH04720	Bearing housing repair, # 6005 6204,6303	1	1 st	€25.40	- +
HG.GH05222	Bearing housing repair, # 6205,6304	1	1 st	€25.56	- +
HG.GH06230	Bearing housing repair, #6007 6206,6305	1	1 st	€26.02	- +
HG.GH06240	Bearing housing repair, #6007 6206,6305	1	1 st	€34.58	- +
HG.GH06250	Bearing housing repair, #6007 6206,6305	1	1 st	€43.08	- +
HG.GH07230	Bearing housing repair, # 6207,6306	1	1 st	€27.64	- +
HG.GH07240	Bearing housing repair, # 6207,6306	1	1 st	€36.84	- +
SE.GH07250	Repair Sleeve Ø 76 mm, length 50 mm	1	1 st	€46.06	- +
KC.GH07250	Knight-Sleeves® bearing housing repair, #6207/6306	1	1 st	€46.06	- +
HG.GH07250	Bearing housing repair, # 6207,6306	1	1 st	€46.06	- +
HG.GH08030	Bearing housing repair, # 6010 6208,6307	1	1 st	€30.28	- +
HG.GH08040	Bearing housing repair, # 6010 6208,6307	1	1 st	€40.32	- +
KC.GH08050	Knight-Sleeves® bearing housing repair, #6010/6208/6	1	1 st	€50.22	- +
HG.GH08050	Bearing housing repair, # 6010 6208,6307	1	1 st	€50.22	- +
HG.GH08530	Bearing housing repair, #6209	1	1 st	€31.06	- +
HG.GH08540	Bearing housing repair, #6209	1	1 st	€41.44	- +
KC.GH08550	Knight-Sleeves® bearing housing repair, #6209	1	1 st	€51.58	- +
HG.GH08550	Bearing housing repair, #6209	1	1 st	€51.58	- +
HG.GH09030	Bearing housing repair, #6011 6210,6308	1	1 st	€32.00	- +
HG.GH09040	Bearing housing repair, #6011 6210,6308	1	1 st	€42.86	- +
KC.GH09050	Knight-Sleeves® bearing housing repair, #6011/6210/6308	1	1 st	€53.20	- +
HG.GH09050	Bearing housing repair, #6011 6210,6308	1	1 st	€53.20	- +

Details

More Information

Product Attachments

Details

More Information

More Information
Opmerkingen	Bearing housings repair sleeves are available for bearings sizes 6002-6026 / 6200 - 6224 / 6300-6320. The sleeves are made from steel S355J2 (1.0577) that machines easily and produces a quality finish. Bearing housings repair sleeves have: - unmatched smooth finish on the ID easing the wear on tooling - exactly 1mm to machine of the ID - good depth to finish in one cut - guaranteed to be round because of our smooth production technique - chamfer on both edges - minimal weight in both handling and shipping - no excess material on ID - close tolerance (+/- 0.002")
Levertijd	Usually from stock, 2-4 days
