Insulation sleeve 4KV - Class F - 155°C - per meter
SKU
GR_RL_4KVF1_NL

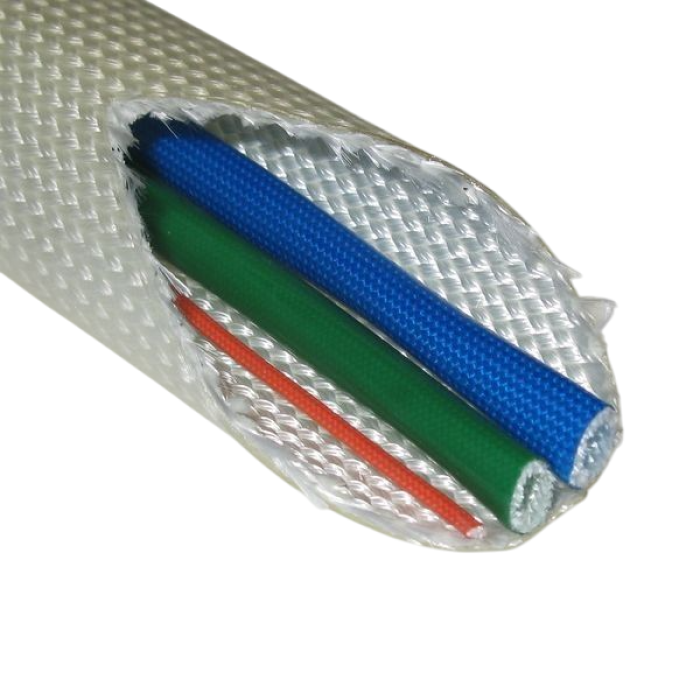

Relats Revitex GUF VPG40, insulating sleeve based on glass silk sleeve with polyurethane lacquer.
Working temperature: -70 °C to + 155 °C
Peaks up to + 225 °C
To protect all kinds of electrical connections. Well applicable to isolate connections in electric motors and transformers.
Characteristics:
- Excellent compatibility with class F impregnation resins and varnishes.
- Strong, very flexible stocking with smooth finish.
- Free from environmentally hazardous and contaminated substances,
completely different from conventional polyurethane coating.
- Resistant to contact with a soldering iron.
- Solvent-free.
Only the dimensions 10 - 25 mm are available in lengths of 1 meter.
Specifications:
Inpact voltage(1 min): 4 kV
Heat class: F (155°C)
| Opmerkingen |
|
|---|---|
| Levertijd | Usually from stock, 2-4 days |
