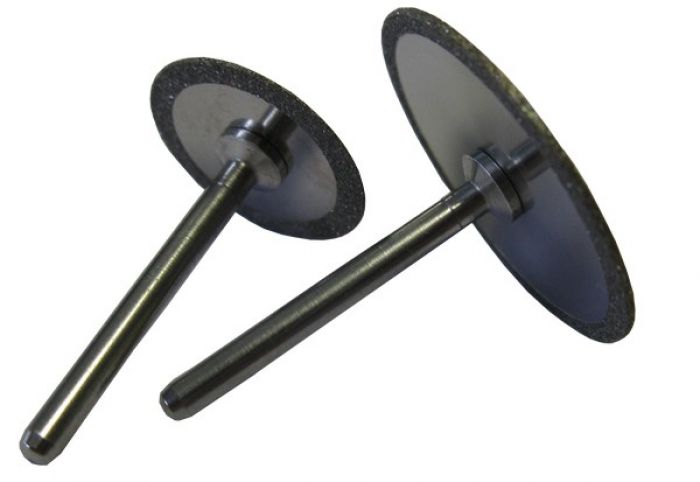

Diamond grinding wheel on shaft

SKU
GR_HO_DIA1624_NL

The diamond grinding wheel is provided with a fixed shaft with a diameter of 2.35 mm. The discs have a diameter of 16 mm and 24 mm.


This diamond discs are usable in conjunction with the various electric multi tools.

Diamond Grinding Discs are suitable for the machining of:
carbide
glass, ceramics (also Eng.-ceramics) and porcelain
wear resistant layers
ferrite, silicon
graphite, carbon brushes
thermosets, glass fiber reinforced plastics
natural and artificial stone
refractory

For machining steel, the diamond disc should not be used, because a chemical reaction between the iron (Fe) in the steel and carbon (C) in the diamond cause a very rapid wear of the diamond tool.

Diamond grinding wheel on shaft Subproducts

Article number Product name Order size Unit Price Stock Qty
HO.FR16.04 Diamond wheels Ø 16,5 mm width 0,4 mm 1 1 st
€34.98
-
+
HO.FR16.05 Diamond wheels Ø 16,5 mm width 0,5 mm 1 1 st
€34.98
-
+
HO.FR16.06 Diamond wheels Ø 16,5 mm width 0,6 mm 1 1 st
€34.98
-
+
HO.FR24.04 Diamond wheels Ø 24,5 mm width 0,4 mm 1 1 st
€42.12
-
+
HO.FR24.06 Diamond wheels Ø 24,5 mm width 0,6 mm 1 1 st
€42.12
-
+
HO.FR24.08 Diamond wheels Ø 24,5 mm width 0,8 mm 1 1 st
€42.12
-
+
HO.FR24.10 Diamond wheels Ø 24,5 mm width 1,0 mm 1 1 st
€42.12
-
+
Details

More Information
More Information
Opmerkingen
max. speed 50.000 rpm
  16 mm 0,4 - 0,6 mm dikte
  24 mm 0,4 - 1,0 mm dikte



Levertijd Usually from stock, 2-4 days
